FRAME FEATURES:

- Enduro Geometry

- 5.5 inches rear travel

- Top Tube Bend for Additional Clearance

- Custom Taper Rear Stays

- Triangulated Rear Swing Arm

Frame MSRP:
- $1499 USD

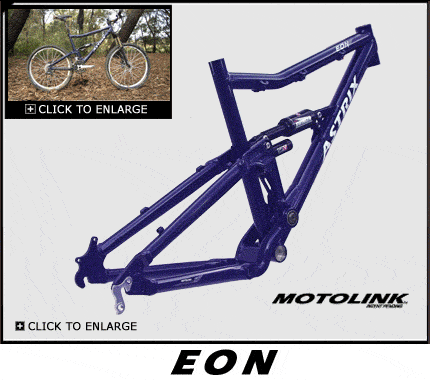

The EON, as the name implies, was developed to be able to be ridden continuously. The Eon will take you all over the mountain through a variety of terrain, whether through the rough, up a steep climb or pointing it back down your well earned descent with all the obstacles on your path. With 5.6" of travel and a light weight frame, the Eon balances climbing and descending for the versatility you are looking for.

Seat Post Size: 30.9 mm
Front Derailleur: 34.9mm clamp
Bottom Bracket Wdth: 73mm
Frame Weight: 8.0 lbs (M)

XS
S
M
L

A
21
21.9
23.2
24.0

B
69.5
69.5
69.5
69.5

C
71.5
71.5
71.5
71.5

D
40.7
41.5
42.9
43.7

E
16.9
16.9
16.9
16.9

F
13.5
13.5
13.5
13.5

G
4.0
4.0
4.5
5.0

H
28
29
30
31.5

*Based on 145mm fork travel

A - Top Tube - Horizontal (inches)
B - Head Tube Angle (degrees)
C - Seat Tube Angle (degrees)
D - Wheelbase (inches)
E - Chainstay Length (inches)
F - Bottom Bracket Height(inches)
G - Head Tube Length (inches)
H - Stand Over Height (inches)
