FRAME FEATURES:

- All Mountain / Slope Style Inspired Geometry

- 6.5 inches rear travel

- Full length straight seat tube

- Chain Guide Mount

- Custom 7005 T6 Aluminum

FRAME MSRP:
- $1599 USD

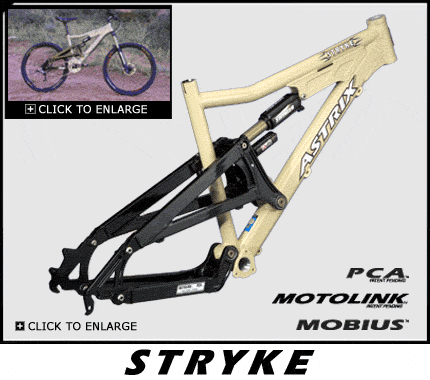

The Stryke frame features our uniquely designed frame, with a rear suspension designed around our patented system that are big on performance. We then pair that with a Manitou Swinger Air rear shock.  So, whether you are a cross-country rider who likes to let loose in the rough, or a freerider who needs a bike to explore the trail system for an all-day adventure, the Stryke is the one bike you need. It is as versatile as you are; fast and efficient over everything up and down.

Seat Post Size: 30.9 mm
Front Derailleur: 34.9mm clamp
Bottom Bracket Width: 73mm
Rear Shock: 200mm x 55mm
Frame Weight: 9.1 lbs (M)

XS
S
M
L

A
21
22
23.2
24.2

B
68
68
68
68

C
73
73
73
73

D
42.3
43
44.5
45.5

E
16.8
16.8
16.8
16.8

F
14.0
14.0
14.0
14.0

G
4.0
4.0
4.5
5.0

H
28
29
30
31.5

*Based on 160mm fork travel

A - Top Tube - Horizontal (inches)
B - Head Tube Angle (degrees)
C - Seat Tube Angle (degrees)
D - Wheelbase (inches)
E - Chainstay Length (inches)
F - Bottom Bracket Height(inches)
G - Head Tube Length (inches)
H - Stand Over Height (inches)
